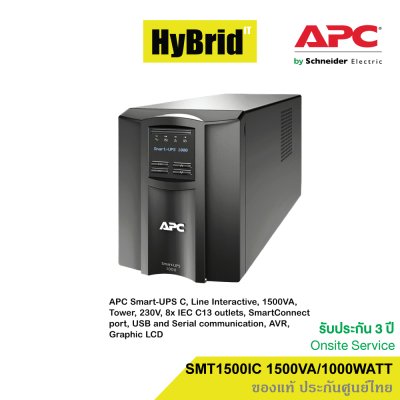

APC Smart-UPS SMT1500IC 1500VA/1000WATT LCD 230V with SmartConnect

APC Smart-UPS SMT1500IC 1500VA/1000WATT LCD 230V with SmartConnect

Output Connections : (8) IEC 320 C13 (Battery Backup), (2) IEC Jumpers (Battery Backup)
Topology : Line Interactive
Waveform type : Sine wave
Max Configurable Power (Watts) : 1.0kWatts / 1.5kVA
Input Connections : IEC-320 C14
Control panel : Multi-function LCD status and control console
Interface Port(s) : SmartSlot, USB
Warranty : 3 Year Warranty Onsite Swap by Schneider Electric (Thailand)

ITEM DESCRIPTION
Output
Output power capacity : 1.0kWatts / 1.5kVA
Max Configurable Power (Watts) : 1.0kWatts / 1.5kVA
Nominal Output Voltage : 230V
Output Voltage Note : Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion : Less than 5%
Output Frequency (sync to mains) : 50/60Hz +/- 3 Hz
Other Output Voltages : 220, 240
Topology : Line Interactive
Waveform type : Sine wave
Output Connections : (8) IEC 320 C13 (Battery Backup), (2) IEC Jumpers (Battery Backup)
Transfer Time : 6ms typical : 10ms maximum

Input
Nominal Input Voltage : 230V
Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections : IEC-320 C14
Cord Length : 1,83meters
Input voltage range for main operations : 160 - 286V
Input voltage adjustable range for mains operation : 151 - 302V
Number of Power Cords : 1
Other Input Voltages : 220, 240

Batteries & Runtime
Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time : 3hour(s)
Replacement Battery : RBC7
Expected Battery Life (years) : 3 - 5
RBC Quantity : 1

Communications & Management
Interface Port(s) : SmartSlot, USB
Control panel : Multi-function LCD status and control console
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO) : --
Available SmartSlot Interface Quantity : 1

Surge Protection and Filtering
Surge energy rating : 459Joules
Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical
Maximum Height : 219MM, 21.9CM
Maximum Width : 171MM, 17.1CM
Maximum Depth : 439MM, 43.9CM
Net Weight : 24.09KG
Shipping weight : 27.23KG
Shipping Height : 376MM, 37.6CM
Shipping Width : 328MM, 32.8CM
Shipping Depth : 595MM, 59.5CM
Color : Black
Units per Pallet : 12.0

Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 %
Operating Elevation : 0-3000meters
Storage Temperature : -15 - 45 °C
Storage Relative Humidity : 0 - 95 %
Storage Elevation : 0-15000meters
Audible noise at 1 meter from surface of unit : 45.0dBA
Online thermal dissipation : 135.0BTU/hr

Conformance
Approvals : CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE

Sustainable Offer Status
RoHS : Compliant
REACH : REACH: Contains No SVHCs
Other Environmental Compliance : China RoHS
