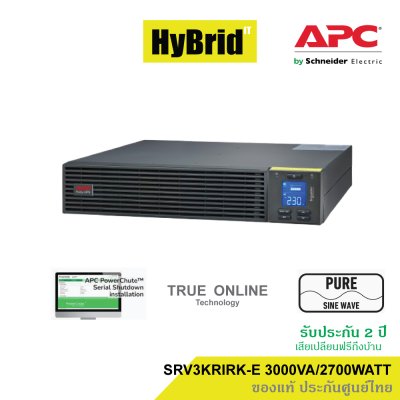

APC Easy UPS SRV3KRIRK-E Rack (3000VA/2700WATT) with Rail Kit

APC Easy UPS SRV3KRIRK-E Rack (3000VA/2700WATT) with Rail Kit

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.


Main

รันไทม์สําหรับโหลด 2700 W ต่ำสุด-สูงสุด: 270-2700 W : 2min 54s

ความจุสูงสุดที่ใช้ 100 %

Main Input Voltage 230 V

product or component type

Uninterruptible power supply (UPS)

Other Input Voltage 220 V/240 V

Main Output Voltage 230 V

Other Output Voltage 220 V/240 V

Rated power in W 2700 W

Rated power in VA 3000 VA

Input Connection Type

IEC 60320 C20

output connection type

6 IEC 60320 C13

1 IEC 60320 C19

Number of rack unit

2U

Cable length

1.5 m

Number of cables

1

Provided equipment

1 IEC 60320 C19 to Schuko power cable

1 IEC 60320 C13 to C14 power cable

1 USB cable

1 RS-232 configuration cable

1 rack mounting brackets

1 rack mounting support rails

user manual

Range of product

Easy UPS On-Line

Batteries & Runtime

รันไทม์

View Runtime Graph

ประสิทธิภาพ

View Efficiency Graph

Battery type

Lead-acid battery

Battery voltage

72 V

Number of battery filled slots

0

Number of battery free slots

0

Battery recharge time

4 h

Battery life

35 year(s)

Replacement battery

APCRBCV202

Battery charger power

60 W rated

General

Max runtime

3 min

Number of power module filled slots

0

Number of power module free slots

0

Redundant

No

Physical

Colour

Black (RAL 7010)

Height

8.6 cm

Width

43.8 cm

Depth

63.2 cm

net weight

28.5 kg

mounting location

Front

Mounting preference

Lower

mounting mode

Rack-mounted

USB compatible

Yes

Mounting position

Horizontal

Input

Input voltage limits

110...285 V half load

180...285 V full load

Network frequency

40...70 Hz auto sensing

Output

Maximum configurable power in VA

3000 VA

Maximum configurable power in W

2700 W

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Harmonic distortion

3 %

UPS type

Double conversion online

Wave type

Sine wave

Efficiency

88 % (full load)

Additional information

Configurable for 220 : 230 or 240 nominal output voltage

Bypass type

Internal bypass (automatic and manual)

Crest factor

3 : 1

Conformance

Product certifications

CE

UKCA

TISI

Standards

EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018

Environmental

Ambient air temperature for operation

040 °C

Relative humidity

095 % non-condensing

Operating altitude

0...3000 m

Ambient air temperature for storage

-2050 °C

Storage Relative Humidity

095 % non-condensing

Storage altitude

015000 m

Acoustic level

50 dBA

heat dissipation

1024 Btu/h

IP degree of protection

IP20

Communications & Management

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Free slots

1

control panel

Multifunction LCD status and control console

Surge Protection and Filtering

Surge energy rate

945 J

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

22.8 cm

Package 1 Width

79.4 cm

Package 1 Length

57 cm

Package 1 Weight

32.5 kg

Contractual warranty

Warranty

2 years repair or replace
