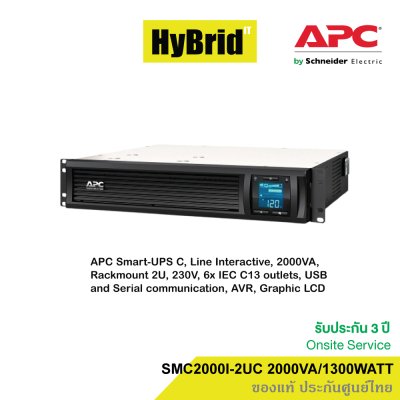

APC Smart-UPS SMC2000I-2UC 2000VA/1300WATT LCD Rack 2U 230V with SmartConnect

APC Smart-UPS SMC2000I-2UC 2000VA/1300WATT LCD Rack 2U 230V with SmartConnect

Output Connections : (6) IEC 320 C13 (Battery Backup)

Topology : Line Interactive

Waveform type : Sine wave

Max Configurable Power (Watts) : 1.3 KWatts / 2.0 kVA

Input Connections : IEC-320 C20

Control panel : Multi-function LCD status and control console

Interface Port(s) : USB

Rack Height : 2 U

Warranty : 3 Year Warranty Onsite Swap by APC Thailand

ITEM DESCRIPTION
Output
Output power capacity: 1.3 KWatts / 2.0 kVA
Max Configurable Power (Watts): 1.3 KWatts / 2.0 kVA
Nominal Output Voltage: 230V
< b>Output Voltage Distortion: Less than 5%
Output Frequency (sync to mains): 50 Hz
Topology: Line Interactive
Waveform type: Sine wave
Output Connections: (6) IEC 320 C13 (Battery Backup)
Transfer Time: 8ms typical : 10 ms maximum

Input
Nominal Input Voltage: 230V
Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: IEC-320 C20
Input voltage range for main operations: 180 - 287 V
Number of Power Cords: 1

Battery
Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time: 3 hour(s)
Replacement Battery: APCRBC133
Replacement Battery: APCRBC133
RBC Quantity: 1
Battery Volt-Amp-Hour Capacity: 432

Communication
Audible Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays
Control panel : Multi-function LCD status and control console
Emergency Power Off (EPO) : --
Interface Port(s) : USB

Runtime
Output power capacity : 1.3 KWatts / 2.0 kVA

Surge Protection and Filtering
Surge energy rating: 300 Joules
Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical
Maximum Height: 89 mm , 8.9 CM
Maximum Width: 480 mm , 48.0 CM
Maximum Depth: 470 mm , 47.0 CM
Rack Height: 2 U
Net Weight: 26.2 KG
Shipping weight: 30.16 KG
Shipping Height: 250 mm , 25.0 CM
Shipping Width: 590 mm , 59.0 CM
Shipping Depth: 600 mm , 60.0 CM
Color Black Units per Pallet: 16.0

Environmental
Audible noise at 1 meter from surface of unit : 42.0 dBA
Operating Temperature : 0 - 40 °C
Operating Elevation : 0-3000 meters
Operating Relative Humidity : 0 - 95 %
Storage Temperature : -15 - 45 °C
Storage Elevation : 0-15000 meters
Storage Relative Humidity : 0 - 95 %
Online thermal dissipation : 81.0 BTU/hr

Conformance
Approvals : C-tick, CE, EAC, GOST, GS Mark, IRAM, SABS, VDE
Standard warranty : 3 Year Warranty Onsite Swap by APC Thailand

Sustainable Offer Status
RoHS : Compliant
REACH : REACH: Contains No SVHCs
