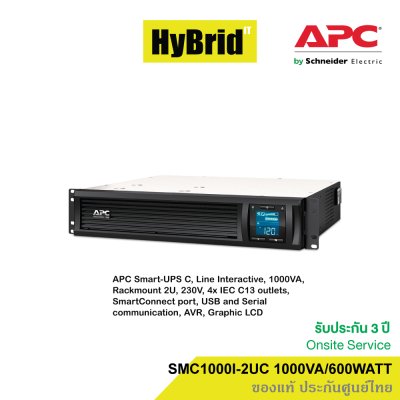

APC Smart-UPS SMC1000I-2UC 1000VA/600WATT LCD Rack 2U 230V with SmartConnect

APC Smart-UPS SMC1000I-2UC 1000VA/600WATT LCD Rack 2U 230V with SmartConnect

Output Connections : (4) IEC 320 C13 (Battery Backup), (2) IEC Jumpers (Battery Backup)

Topology : Line Interactive

Waveform type : Sine wave

Max Configurable Power (Watts) : 600Watts / 1.0kVA

Input Connections : IEC-320 C14

Control panel : Multi-function LCD status and control console
Interface Port(s) : RJ-45 Serial, USB

Warranty : 3 Year Warranty Onsite Swap by Schneider Electric (Thailand)

ITEM DESCRIPTION
Output
Output power capacity : 600Watts / 1.0kVA
Max Configurable Power (Watts) : 600Watts / 1.0kVA
Nominal Output Voltage : 230V
Output Voltage Distortion : Less than 5%
Output Frequency (sync to mains) : 50/60Hz +/- 3 Hz
Other Output Voltages : 220, 240
Topology : Line Interactive
Waveform type : Sine wave
Output Connections : (4) IEC 320 C13 (Battery Backup), (2) IEC Jumpers (Battery Backup)
Transfer Time : 6ms typical : 10ms maximum

Input
Nominal Input Voltage : 230V
Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections : IEC-320 C14
Input voltage range for main operations : 180 - 287V
Input voltage adjustable range for mains operation : 170 - 300V
Number of Power Cords : 1
Other Input Voltages : 220, 240

Batteries & Runtime
Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time : 3hour(s)
Replacement Battery : APCRBC124
Expected Battery Life (years) : 4 - 6
RBC Quantity : 1

Communications & Management
Interface Port(s) : RJ-45 Serial, USB
Control panel : Multi-function LCD status and control console
Audible Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) : --

Surge Protection and Filtering
Surge energy rating : 459Joules
Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical
Maximum Height : 86MM, 8.6CM
Maximum Width : 432MM, 43.2CM
Maximum Depth : 406MM, 40.6CM
Rack Height : 2U
Net Weight : 20.52KG
Shipping weight : 22.33KG
Shipping Height : 241MM, 24.1CM
Shipping Width : 546MM, 54.6CM
Shipping Depth : 584MM, 58.4CM
Color : Black
Units per Pallet : 16.0

Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 %
Operating Elevation : 0-3000meters
Storage Temperature : -15 - 45 °C
Storage Relative Humidity : 0 - 95 %
Storage Elevation : 0-15000meters
Audible noise at 1 meter from surface of unit : 42.0dBA
Online thermal dissipation : 46.0BTU/hr

Conformance
Approvals : C-tick, CE, CSA, GOST, UL 1778, VDE
Standard warranty : 2 years repair or replace

Sustainable Offer Status
RoHS : Compliant
REACH : REACH: Contains No SVHCs
Other Environmental Compliance : China RoHS
