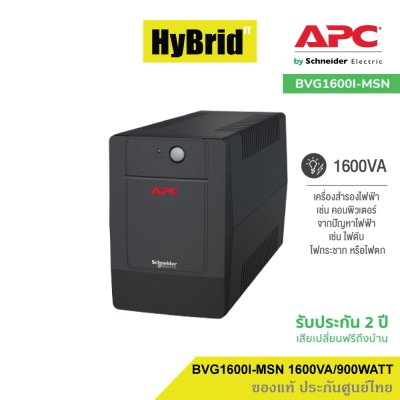

APC Easy UPS BVG1600I-MSN 1600VA (1600VA/900WATT) เครื่องสำรองไฟ , ไฟตก , ไฟกระชาก

Technical Specifications

Overview

Lead time : Usually in Stock



Main

Main Input Voltage : 220...240 V AC 1 phase

Main Output Voltage : 230 V

Rated power in W : 900 W

rated power in VA : 1600 VA

Product or component type : Uninterruptible power supply (UPS)

Input Connection Type : NEMA 7.9 A

Output connector type : Universal

Battery type : VRLA

Range of product : Easy UPS



Batteries & Runtime

Battery charger power : 28 W indoor use only

Battery design life : 35 year(s)

Battery life : 35 year(s)



General

Max runtime : 0.8 min



Physical

Colour : Black

Height : 182 mm

Width : 130 mm

Depth : 320 mm

Net weight : 7.2 kg



Input

Network frequency : 50/60 Hz +/- 5 Hz indoor use only

Input protection type : Circuit breaker



Output

Maximum configurable power in W : 900 W

UPS type : Line interactive

Wave type : Stepped approximation to a sinewave

Output voltage tolerance : +/- 10 %

Efficiency : (indoor use only)

Full load runtime : 00:08:00 900 W

Graph display : 1

Graph start point : 10

Half load runtime : 00:05:30 450 W

Transfer time : 6 ms typical : 10 ms maximum



Environmental

Relative humidity : indoor use only

Operating altitude : 0...3000 m

Ambient air temperature for storage : 25 °C

Storage Relative Humidity : indoor use only

Storage altitude : 03000 m

Acoustic level : < 45 dBA

IP degree of protection : IP20 indoor use only



Communications & Management

Alarm : Alarm when on battery : distinctive low battery alarm : high temperature : overload continuous tone alarm

Emergency power off ; No



Surge Protection and Filtering

Surge energy rate : 156 J



Packing Units

Unit Type of Package 1 : PCE

Number of Units in Package 1 : 1

Package 1 Height : 18.2 cm

Package 1 Width : 13 cm

Package 1 Length ; 32 cm

Package 1 Weight : 9.7 kg

SCC14 : 10731304769610



อุปกรณ์ในกล่อง

BVG1600I-MSN

คู่มือข้อมูลผลิตภัณฑ์



Contractual warranty

Warranty : 2
